Force the connection on a Jira instance
With the “Jira” option (Administration > Settings > Integrations > Jira), the administrator can choose to force the connection on a Jira instance.
To do so, choose the option Forced connection on a given instance, then click on “Configure”.

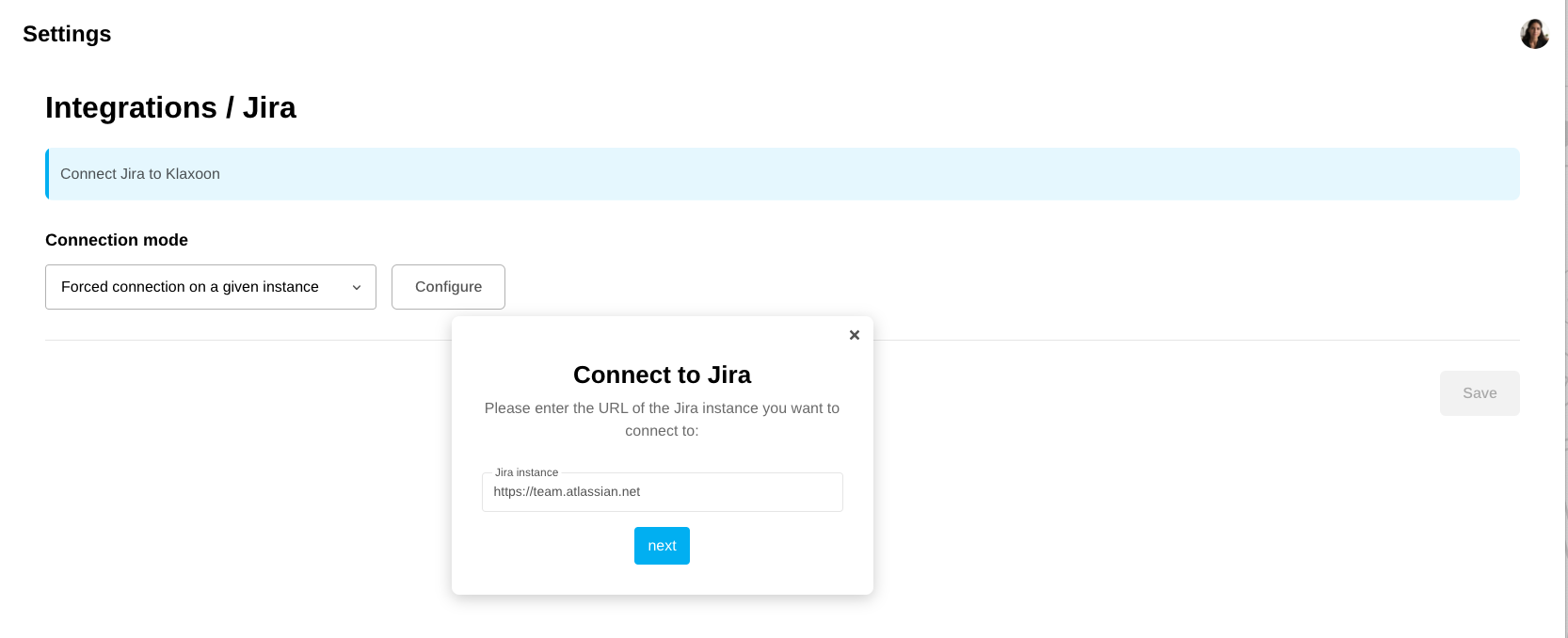

The editing dashboard is displayed to enter the Jira instance URL of your choice.

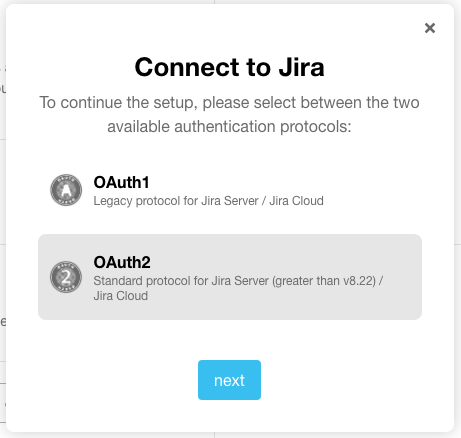

If Klaxoon does not recognize the Jira URL or the version of Jira is unknown, you will be asked to select between two authentication protocols.
Click on Next
If Klaxoon detects the server version based on Jira URL, continue the configuration.
1 For OAuth1 on Jira Cloud and Server DataCenter (version higher than v8.22)

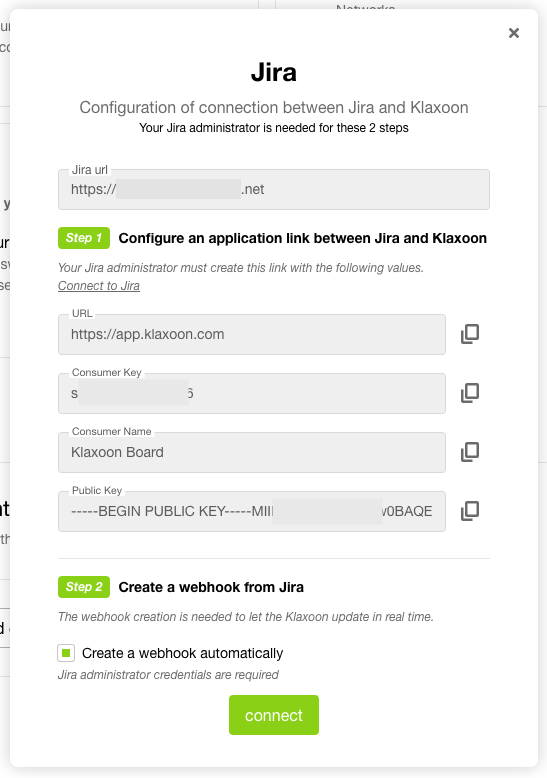

The configuration page of the integration between Klaxoon and Jira is displayed.
Click on Connect if you are the Jira administrator, or ask your Jira Admin to send you these information.
The Jira administrator can find these information in the Jira settings:

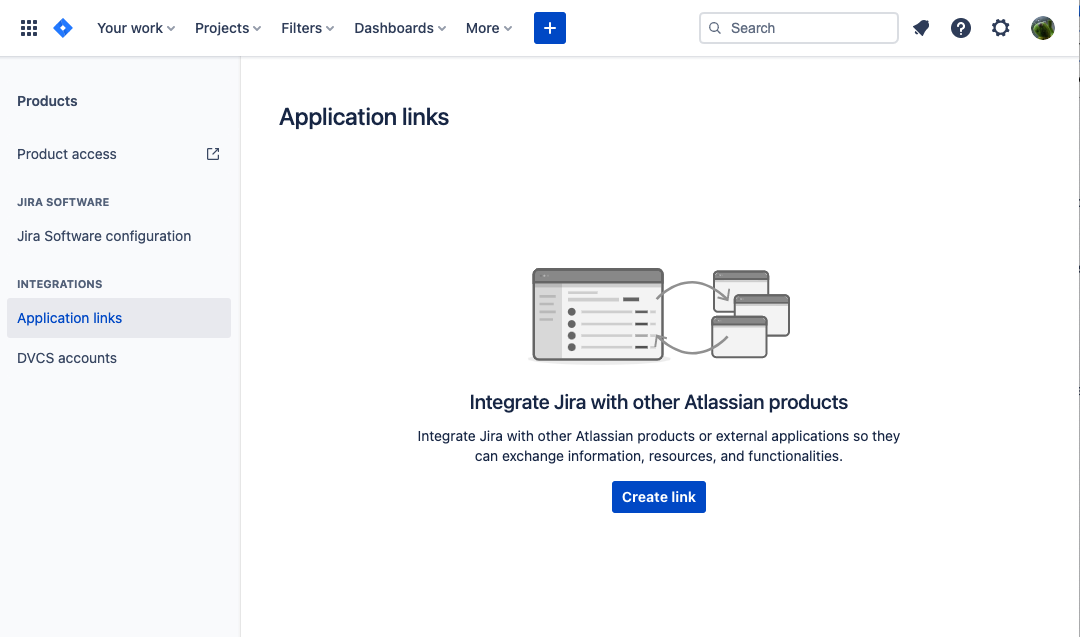

In the tabProducts, click on Application links then, on CREATE A LINK
The link creation page is displayed, enter the URL https://app.klaxoon.com in URL Application
Click on CONTINUE

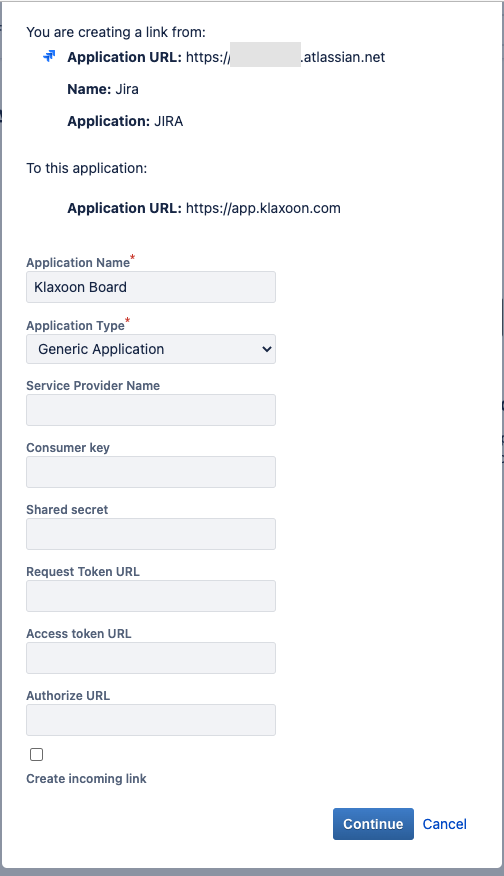

A pop-up is displayed, enter the name if the application with "Klaxoon Board":
Click on CONTINUE

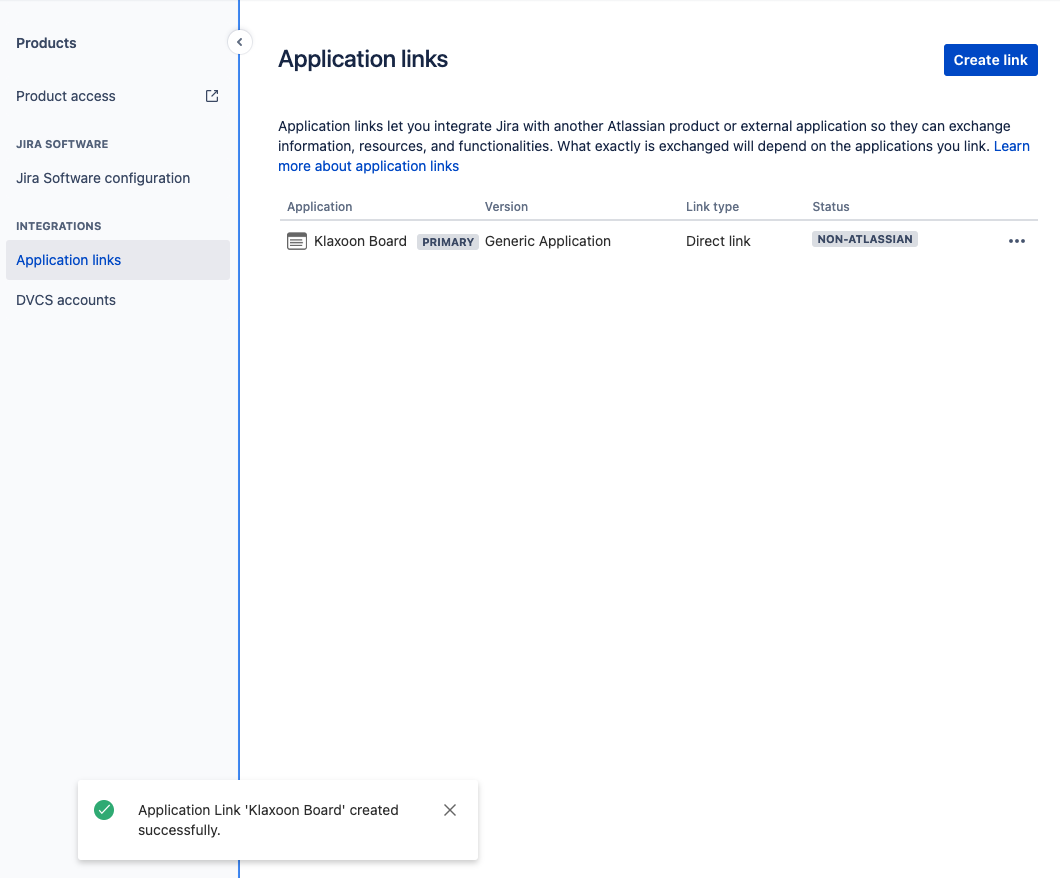

The application link is created
Click at the end line of the "Klaxoon Board" application on the three horizontal dots
Click on EDIT

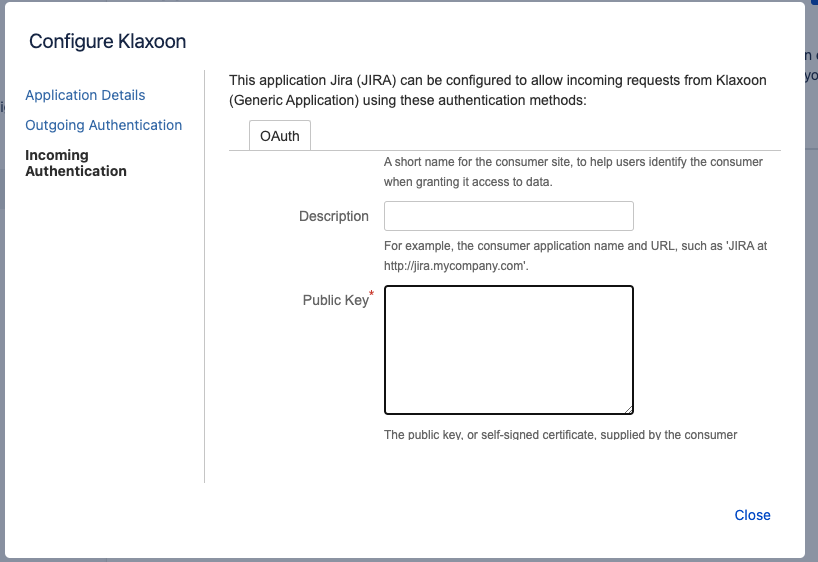

Click on "Incoming authentification" section
Enter the "Consumer Key" and "Consumer Name" from the data provided by Klaxoon
Enter the "Public Key" from the data provided by Klaxoon
Scroll down and click on SAVE
Once the application link is created, go back to the Klaxoon administration and click on CONNECT

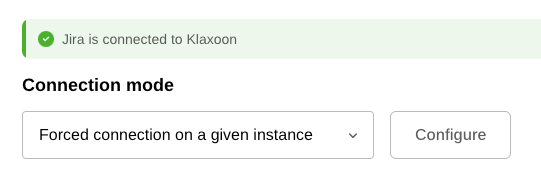

When the configuration is complete, the message “Jira is connected to Klaxoon” shows up.
2 For OAuth2 on Server DataCenter (version higher than v8.22)

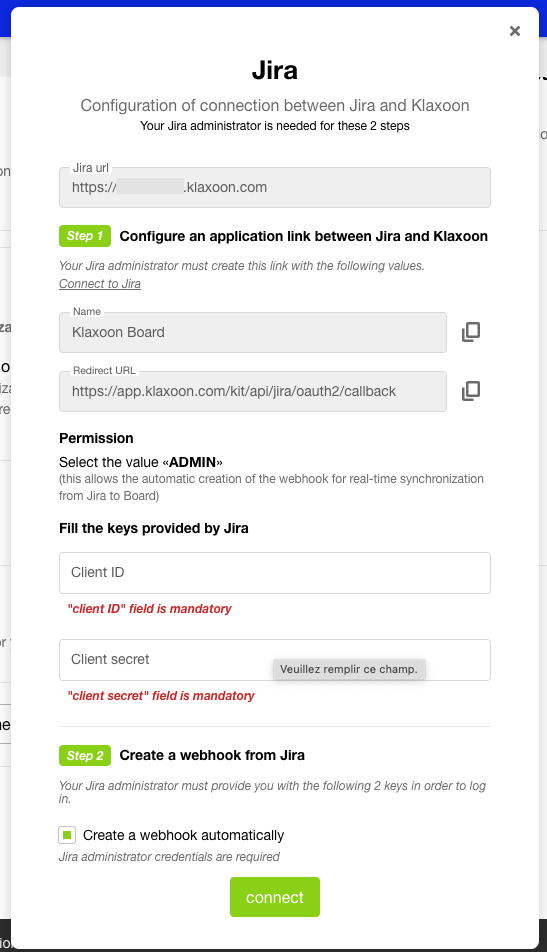

The configuration page of the integration between Klaxoon and Jira is displayed.
Step 1:Once the link between applications is created, setup the application link between Jira and Klaxoon.
The Jira administrator can find these information from their Jira settings.
Step 2: There are two options:
The automatic mode
The manual mode: in this case, simply copy the link provided and forward it to the to the Jira administrator to create the associated webhook
The creation of the webhook remains dependent on the Jira administrator role (or not) of the person performing the Jira import. The user on the Board remains free to choose the Jira instance on which they want to import and is autonomous.
The Jira administrator finds the information required at step 1 in his Jira settings:

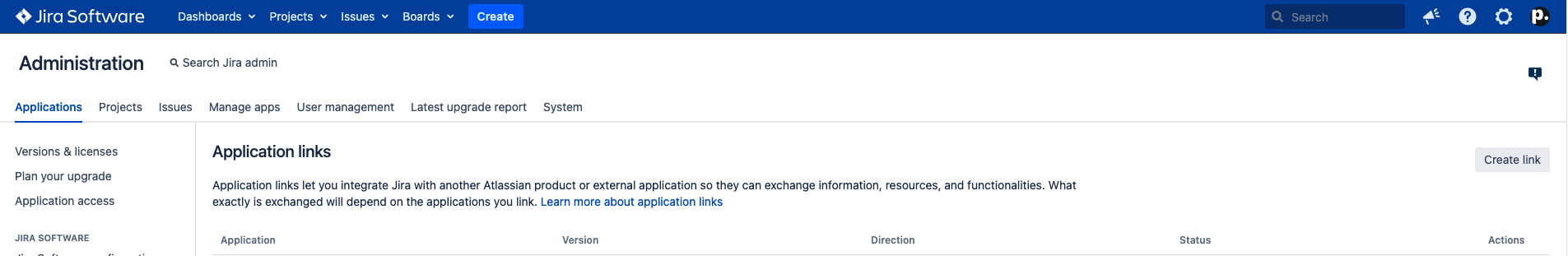

Create a link
Select the type of application you want to connect to:
Atlassian product: link to Jira, Confluence, Bitbucket, Bamboo, Crowd, Fisheye et Crucible
External application: link to an external application using OAuth 2.0
Select the direction :
Incoming : the application can access data from Jira
Outgoing : Jira can access data from the application
Click on CONTINUE

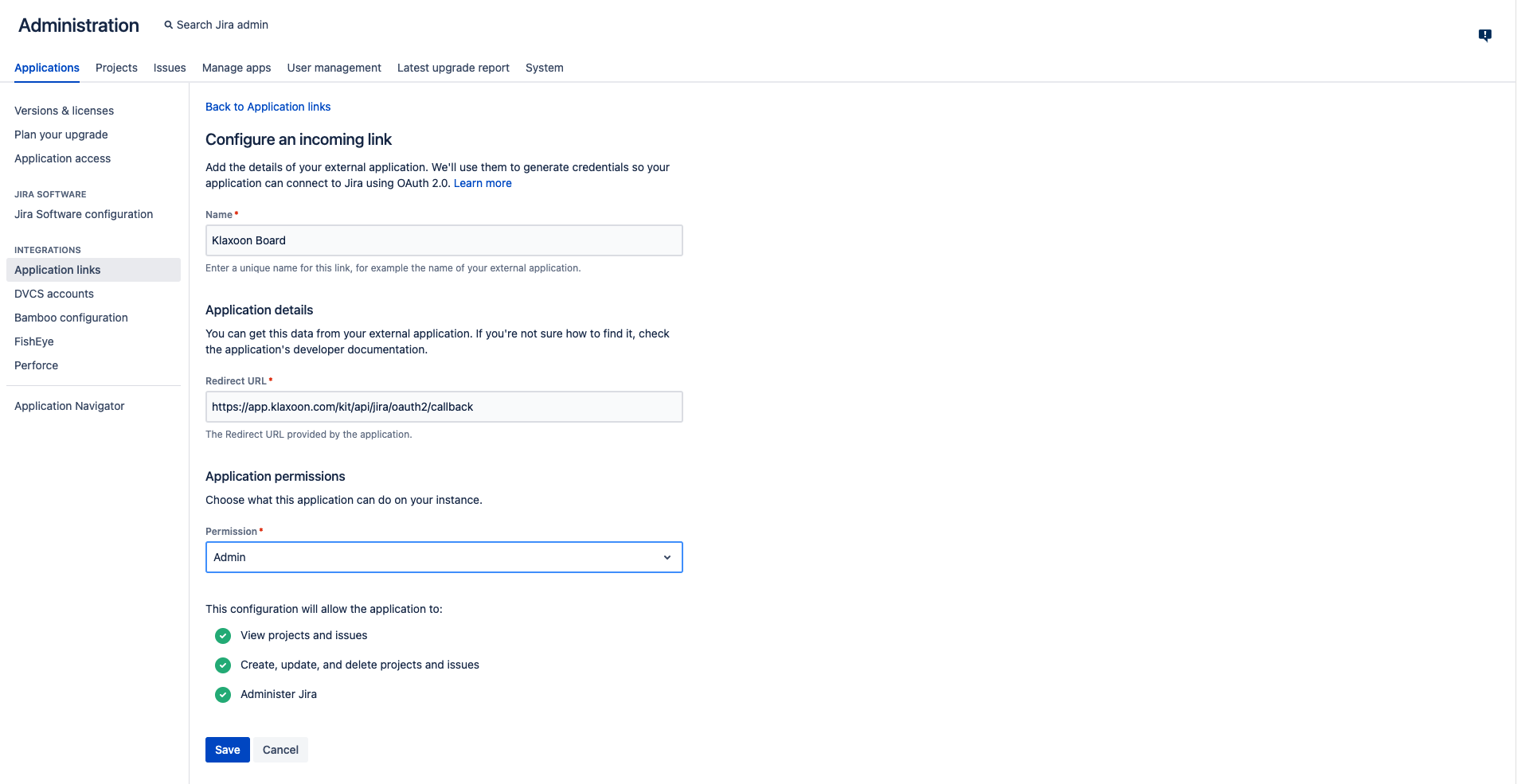

From the Application link tab, enter the application name "Klaxoon Board" and the redirection URL
Click on SAVE

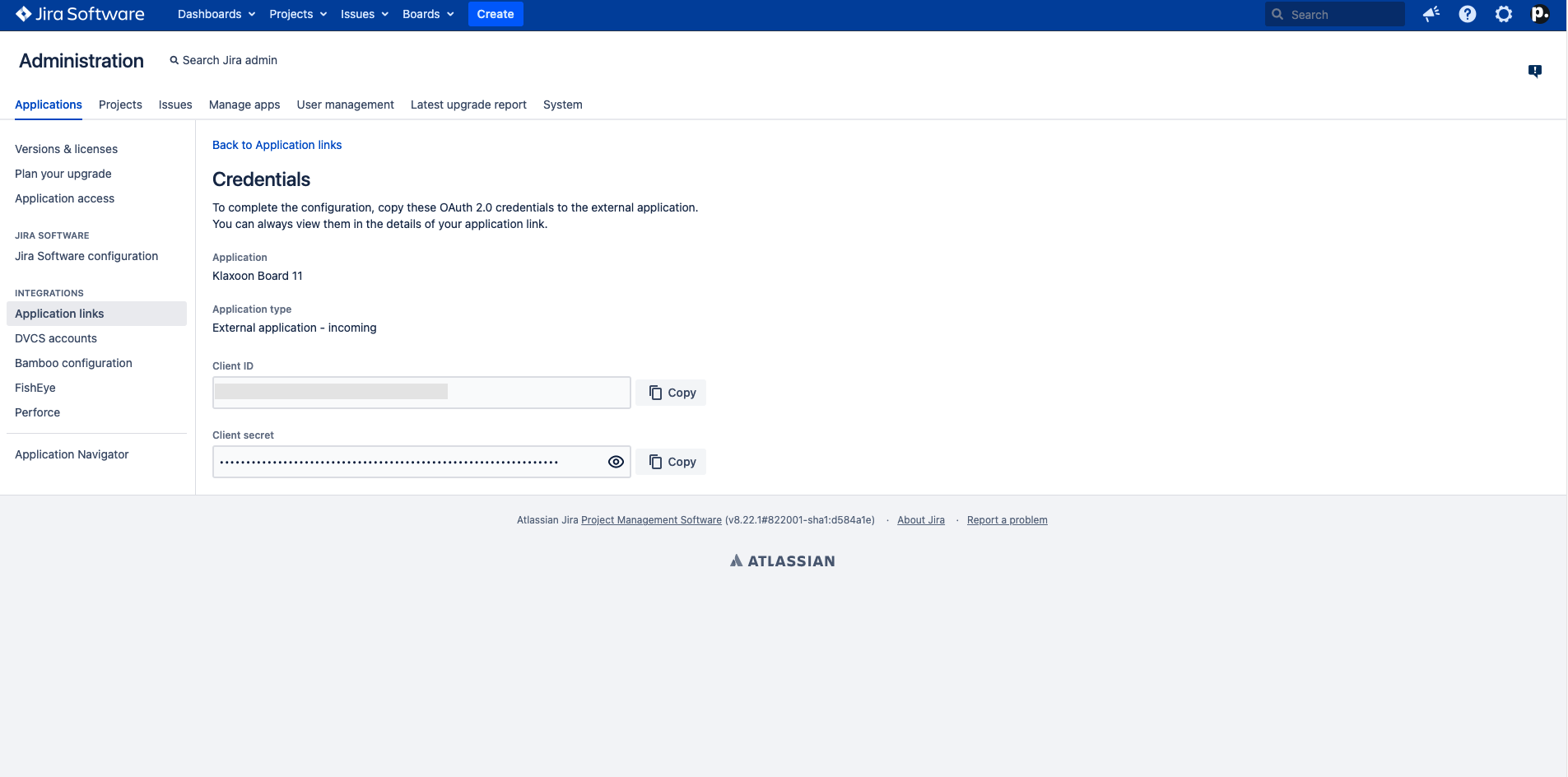

Complete the configuration by copying / pasting the OAuth 2.0 credentials (Client ID and Client Secret) on the Klaxoon configuration page.
When the configuration is complete, a green tick appears on the gear wheel.
