TL;DR:
On a Klaxoon Board, you can add text by selecting the Text tool, clicking anywhere on the board, typing, and formatting it (font, size, color, alignment, etc.). To connect ideas or shapes, open the three-dot menu, choose Connector, then click and drag from one element to another. You can also click a connector to change its style, color, or thickness, and use alignment tools to keep everything neatly arranged.
Important information
This article describes the features of the New Board experience. If you are using the Classic Board interface, respective features are described here.
Please note that the Classic Board experience will soon be discontinued and replaced by the New Board experience. For more information, please click here. Learn how to return to the Classic Board experience in the meantime and find answers to common questions about key updates here.
Overview
Use a Board to structure ideas visually in Klaxoon. You can add text, link items together, and arrange your content for a clear, dynamic layout.
Add Text On a Board
- Open your Board.
-

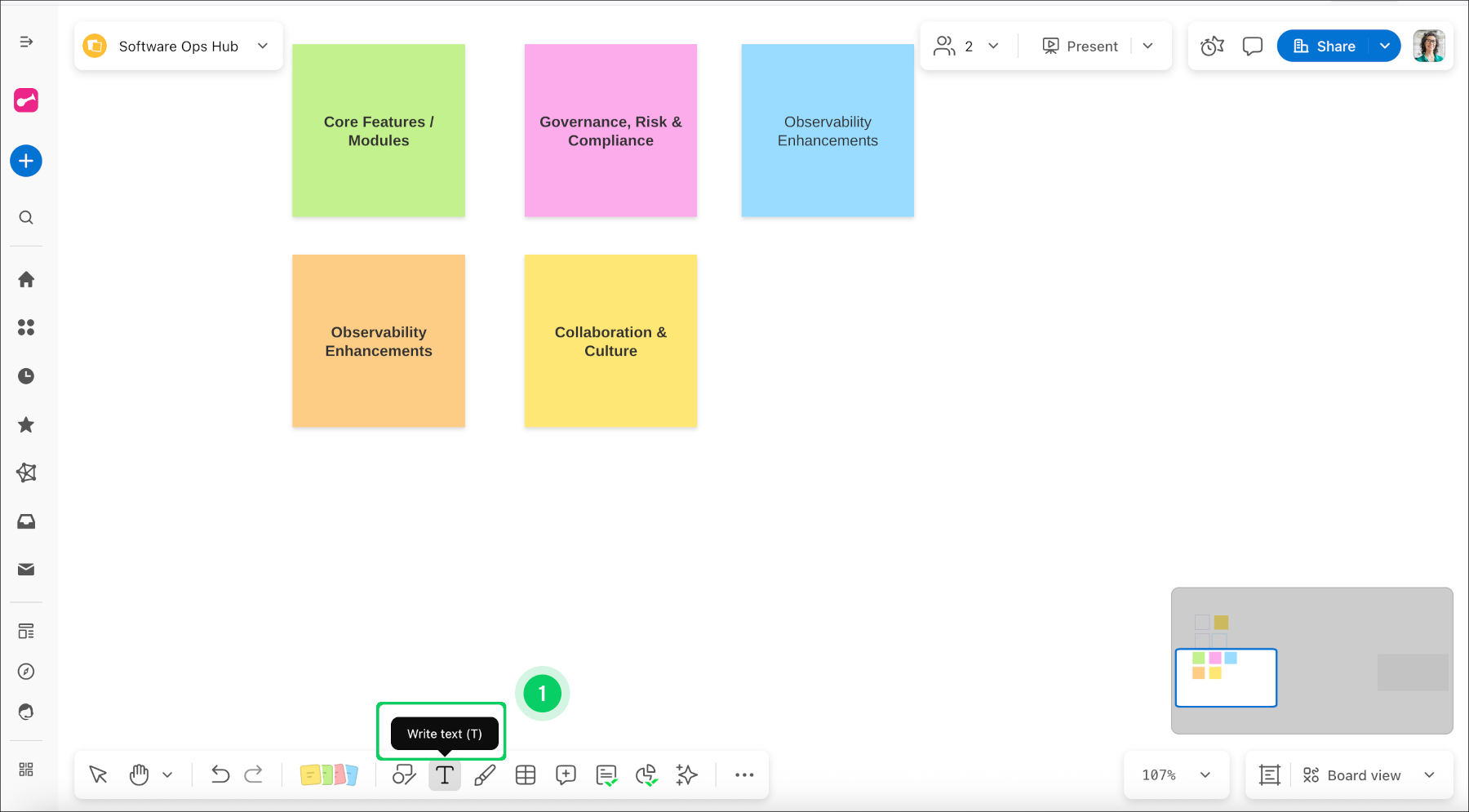

In the toolbar at the bottom left, click the Text 1 tool.
- Click anywhere on the Board where you want to add text.
- Type your text.
-

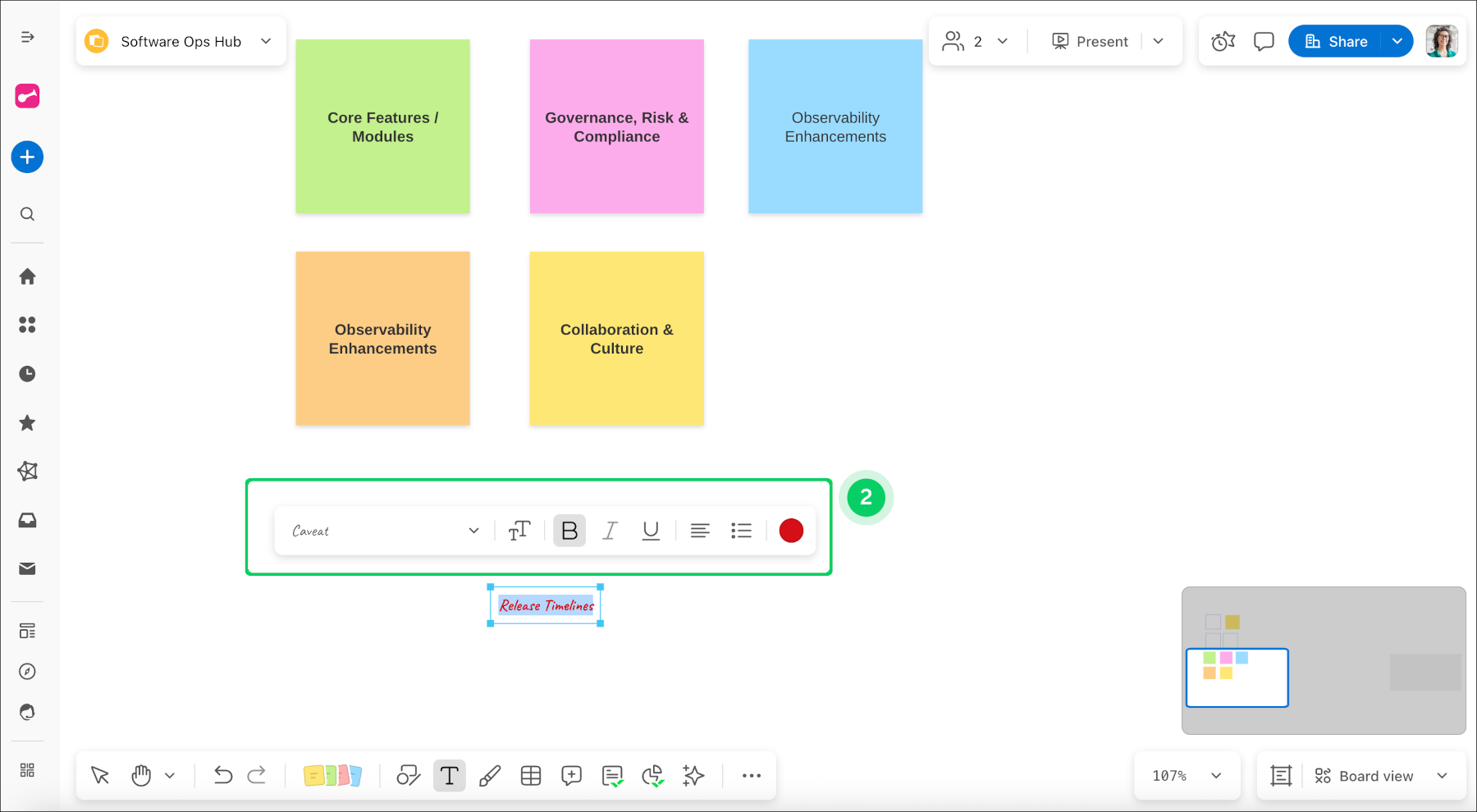

Use the formatting options that appear (font, size, color, alignment, etc.) to format your text 2.

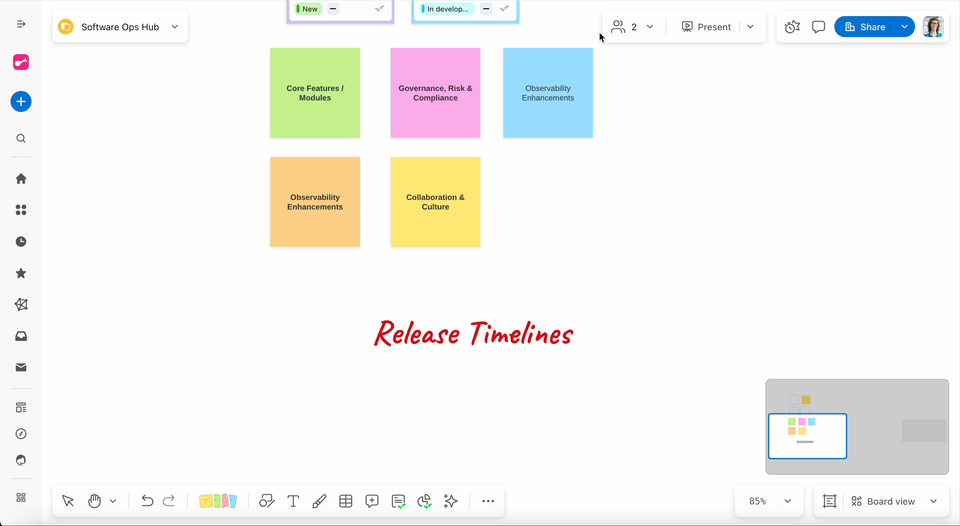

Connect Elements
You can link ideas, shapes, and other elements to show relationships.
-

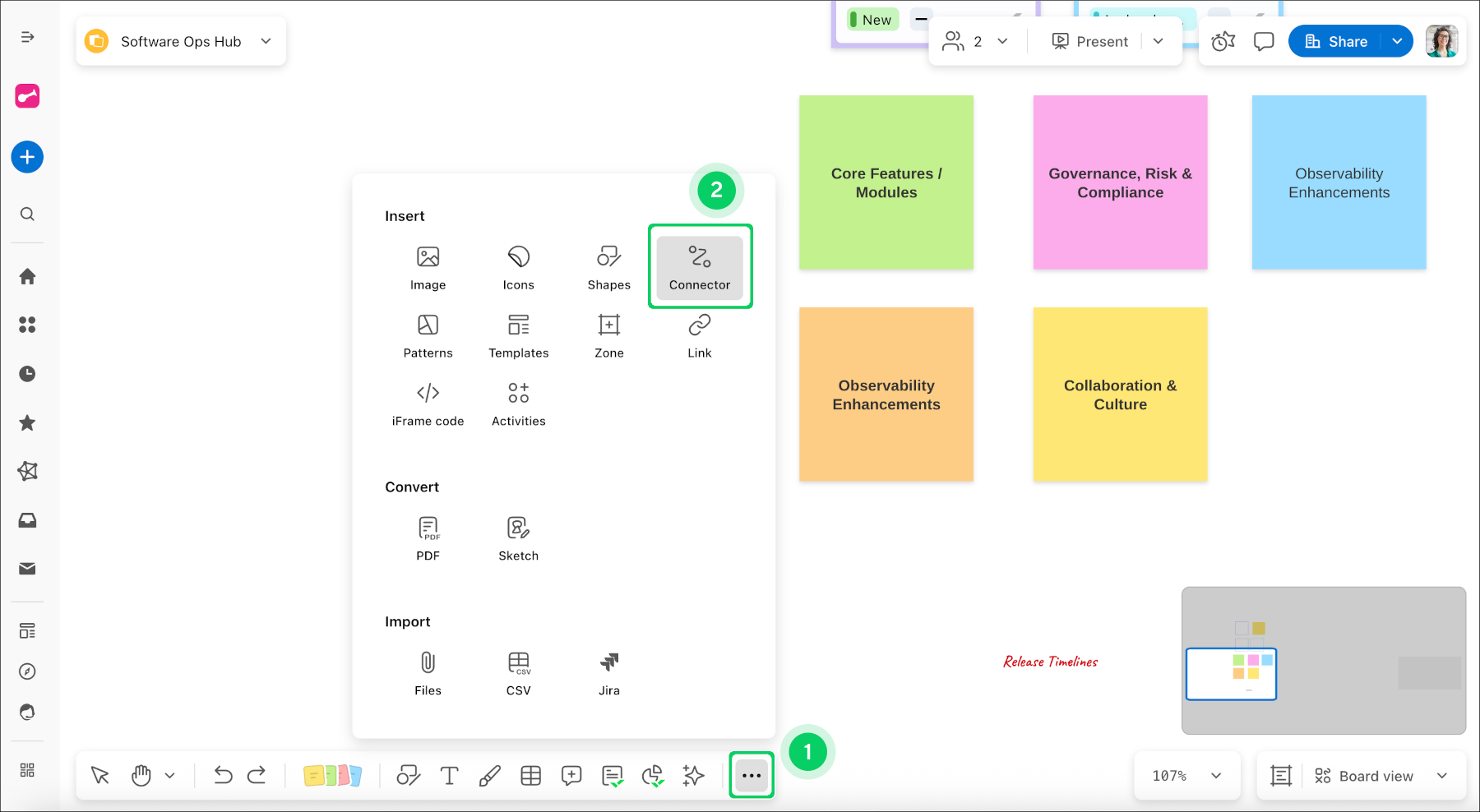

In the toolbar at the bottom left, click the three-dot menu 1.
- Click the Connector 2 tool in the insert menu that appears.
- Click the element you want to start from (for example, an idea or a shape).
-
Hold down your click, drag the link to the target element, then release.
-

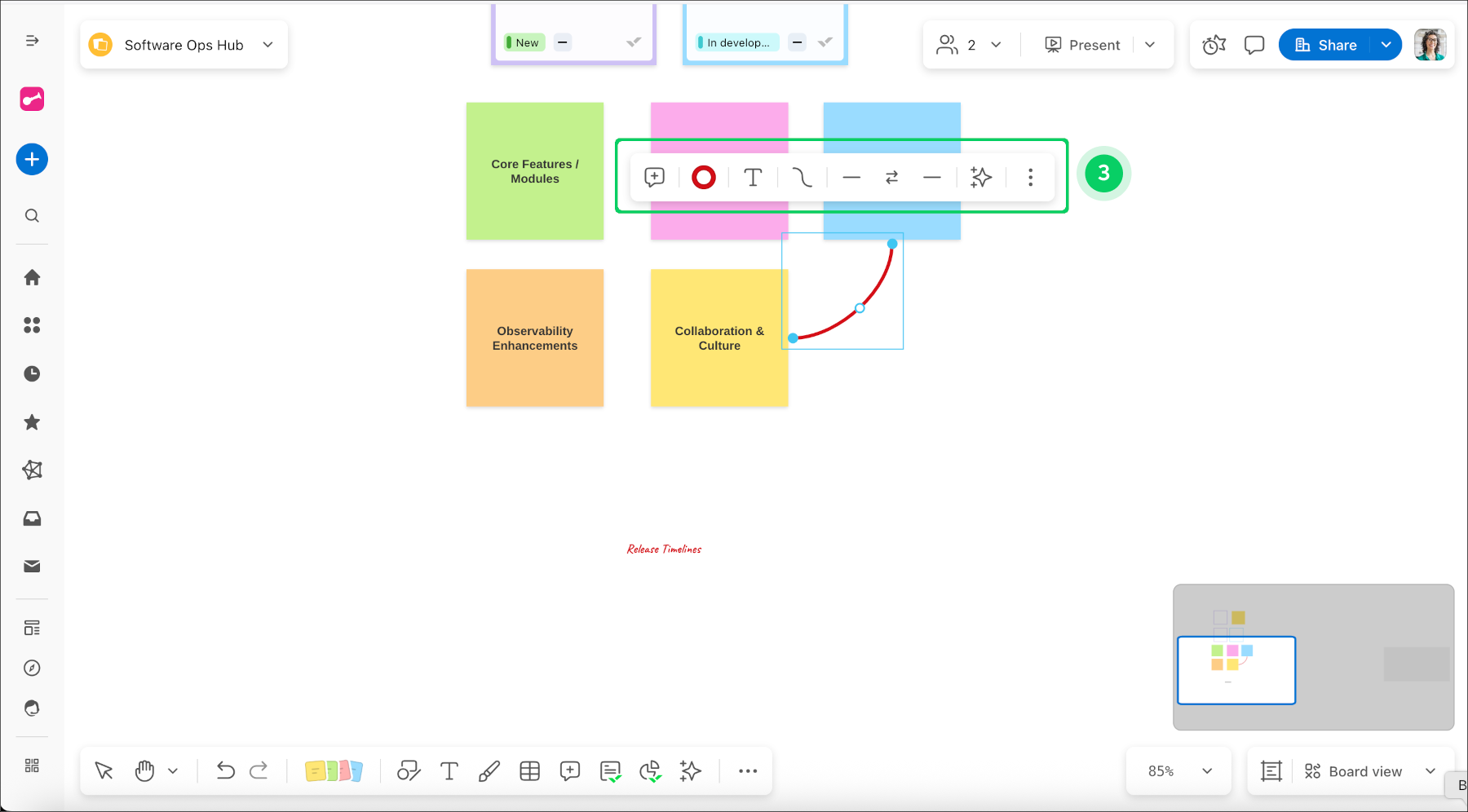

To edit a link, click it once, then adjust its style, color, thickness, or other options in the panel that appears 3.
Arrange Your Board
To align and distribute elements neatly on your Board, use Klaxoon’s layout and alignment tools.
- For detailed steps, see: Align ideas on a Board.
